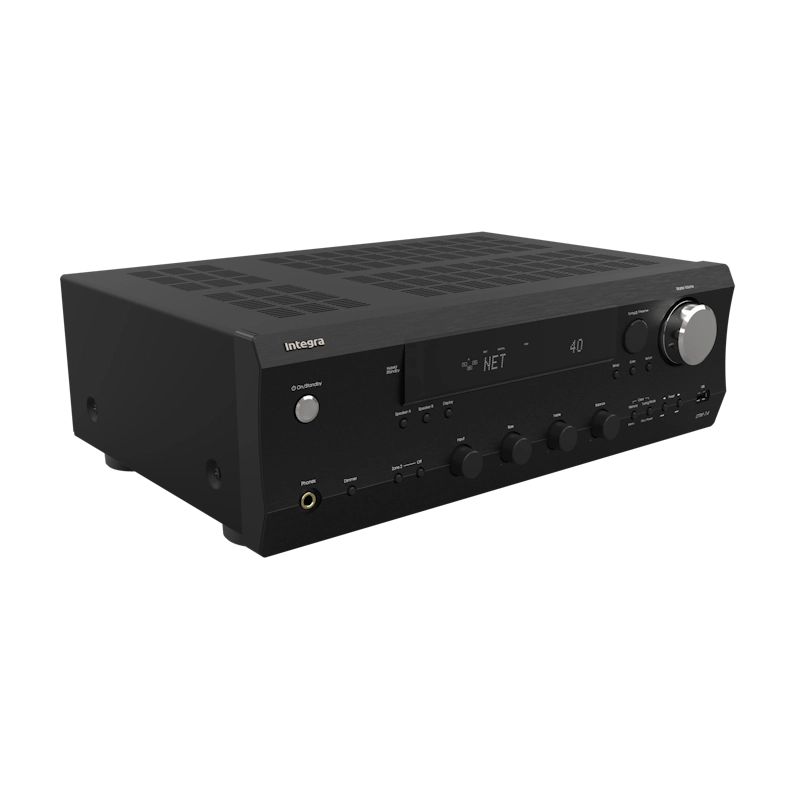

With HDMI ARC technology and support for 8K visual content, the Integra DTM-7.4 Hi-Fi Network Stereo Receiver seamlessly integrates into any home entertainment system, delivering high-resolution audio output while optimizing space efficiency, particularly in compact environments. With audiophile-grade sound and a full suite of custom installation features, this receiver is made for the discerning Hi-Fi consumer with a professionally configured system.

Working with our partners at Control4, Crestron, Josh, Savant, and others, the Integra DTM-7.4 comes packed with a full suite of CI software tools to make installation a breeze. Featuring web setup, IP control, RS232, IR in/out and remote control and diagnostics, this stereo receiver is built for busy professionals configuring premium home entertainment systems.

The precision-engineered DTM-7.4’s optimized componentry ensures focused, refined audio output. With gold-plated terminals, audio-grade capacitors, and carefully chosen copper elements, this stereo receiver delivers pristine sound reproduction and minimizes vibration, driving loudspeakers with expert control for an elevated listening experience.

Designed with vinyl enthusiasts in mind, the Integra DTM-7.4 boasts patented discrete op amp circuitry and an isolated MM/MC phono board, preserving delicate phono signals for enhanced clarity and superior audio performance.

Users can effortlessly access their favorite high-resolution music streaming platforms with this stereo receiver which has been integrated with our partners at Roon, Tidal, Deezer, and more to transform any space into a haven of hi-fi sound.

With modern smart home technology in mind, the Integra DTM-7.4 features built-in third-party assistants like Apple and Google to ensure unparalleled connectivity and compatibility for the ultimate home entertainment ecosystem.

Experience high resolution audio playback thanks to AKM’s premium 32bit/768kHz stereo DAC (AK4452). Capable of supporting wide range signals and at low power consumption, this DAC achieves the industry’s best low distortion characteristics.

Our symmetrical Class G amplifier ensures an efficient, accurate reproduction of audio signals across the entire frequency range. With our low negative feedback (NFB) design, this amp achieves greater transparency and musicality by minimizing distortion and interference for a more natural, dynamic listening experience.

Web setup, download configuration files via browser

Front ping button (“Display” key) to see the IP address

IP control, RS232, IR in/out, and 12v triggers

Control and remote diagnostic (C4, Crestron, OvrC, Domotz)

Compatible with OVRC Pro, Domotz, Luxul Pro Watch, VPN, and other monitoring platforms

Onboard diagnostics tool kit, including test patterns and EDID/HDCP adjustment, virtual remote; all available via web app

Integra’s most robust API ever, with discrete commands for virtually any AVR function

Custom control drivers based on Integrator feedback. Developed and maintained by Integra’s software team in Osaka, Japan

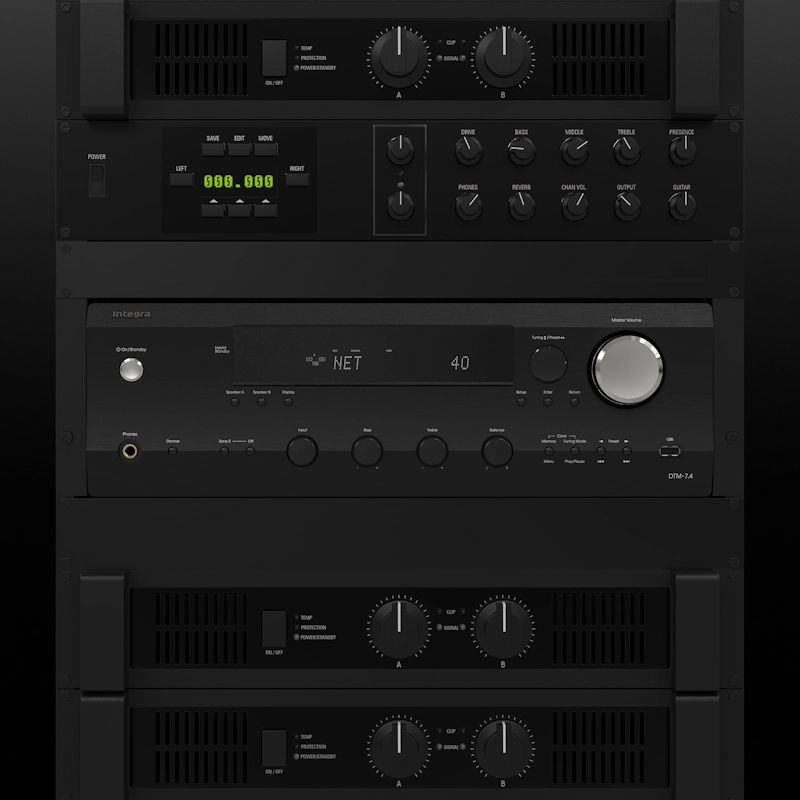

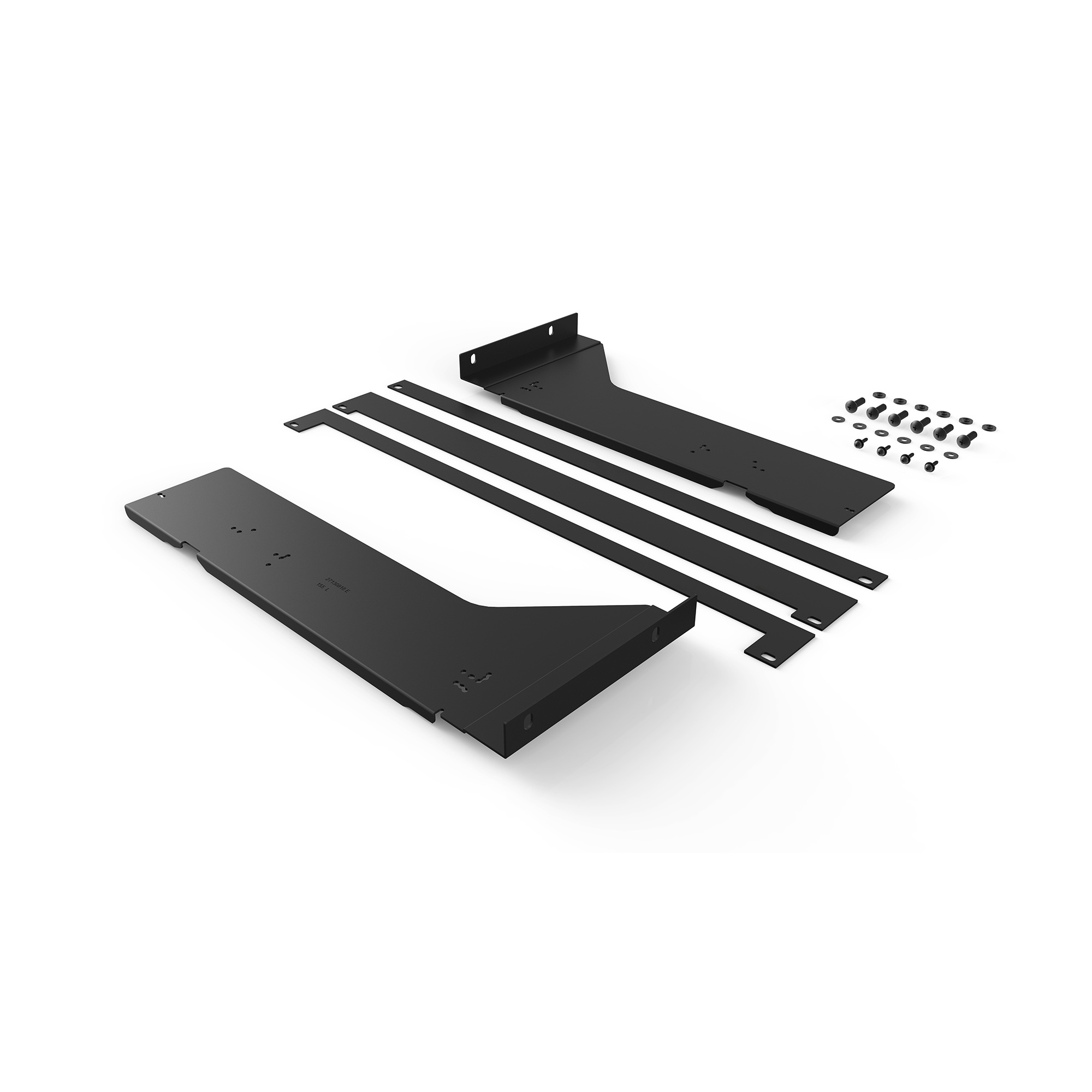

Compatible rack mount (optional)

IRK1553D

See our full warranty information here

110W/ch x 2ch (8Ω, 20-20kHz, 0.08% THD)

Frequency response 5Hz - 100kHz (+1/-3dB Direct Mode)

Speaker impedance: 4-16 ohms

Tone control Bass(100Hz) & Treble (10KHz): +/- 10dB

768KHz/32bits D/A converter - AK4452

Dedicated MM/MC Phono Circuit Board

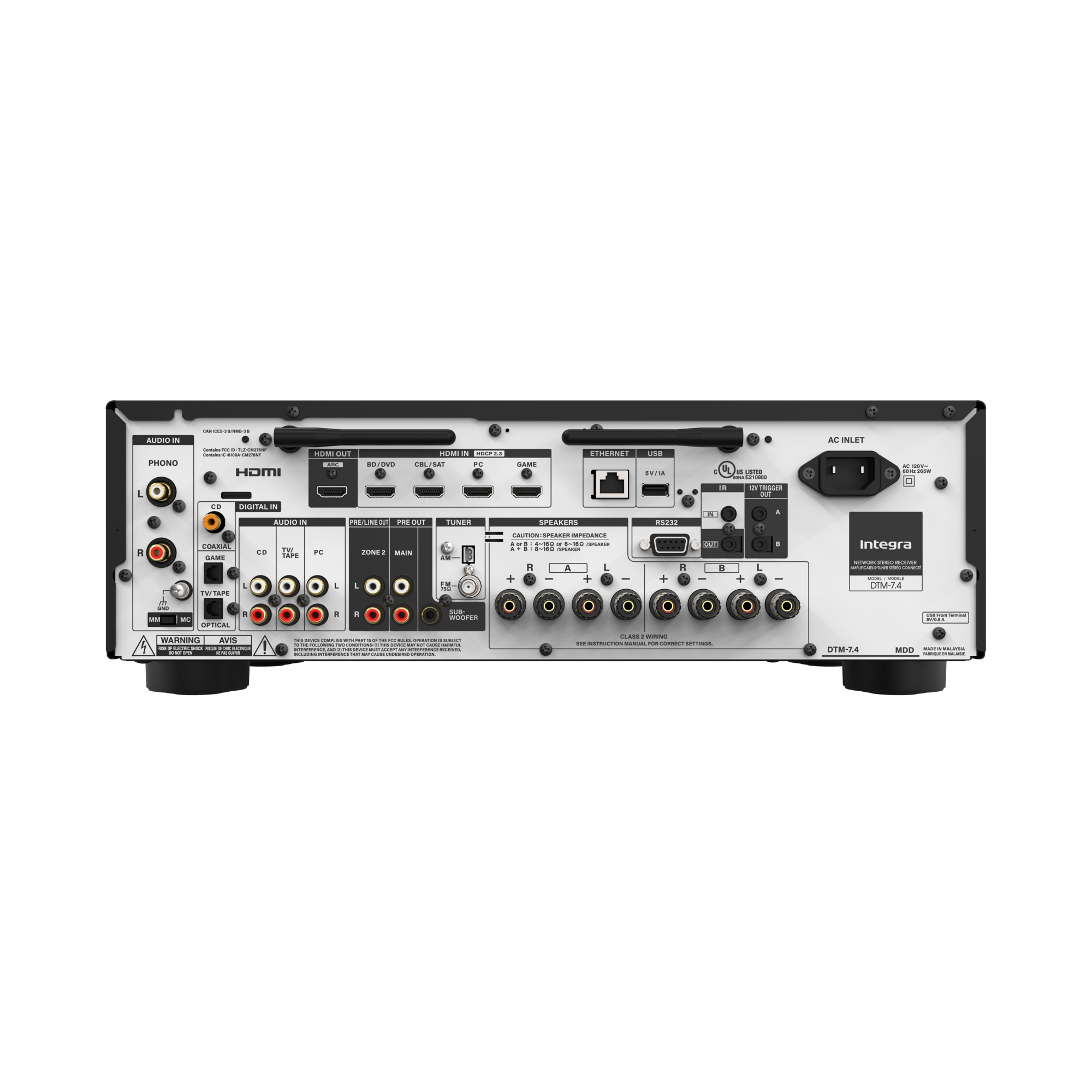

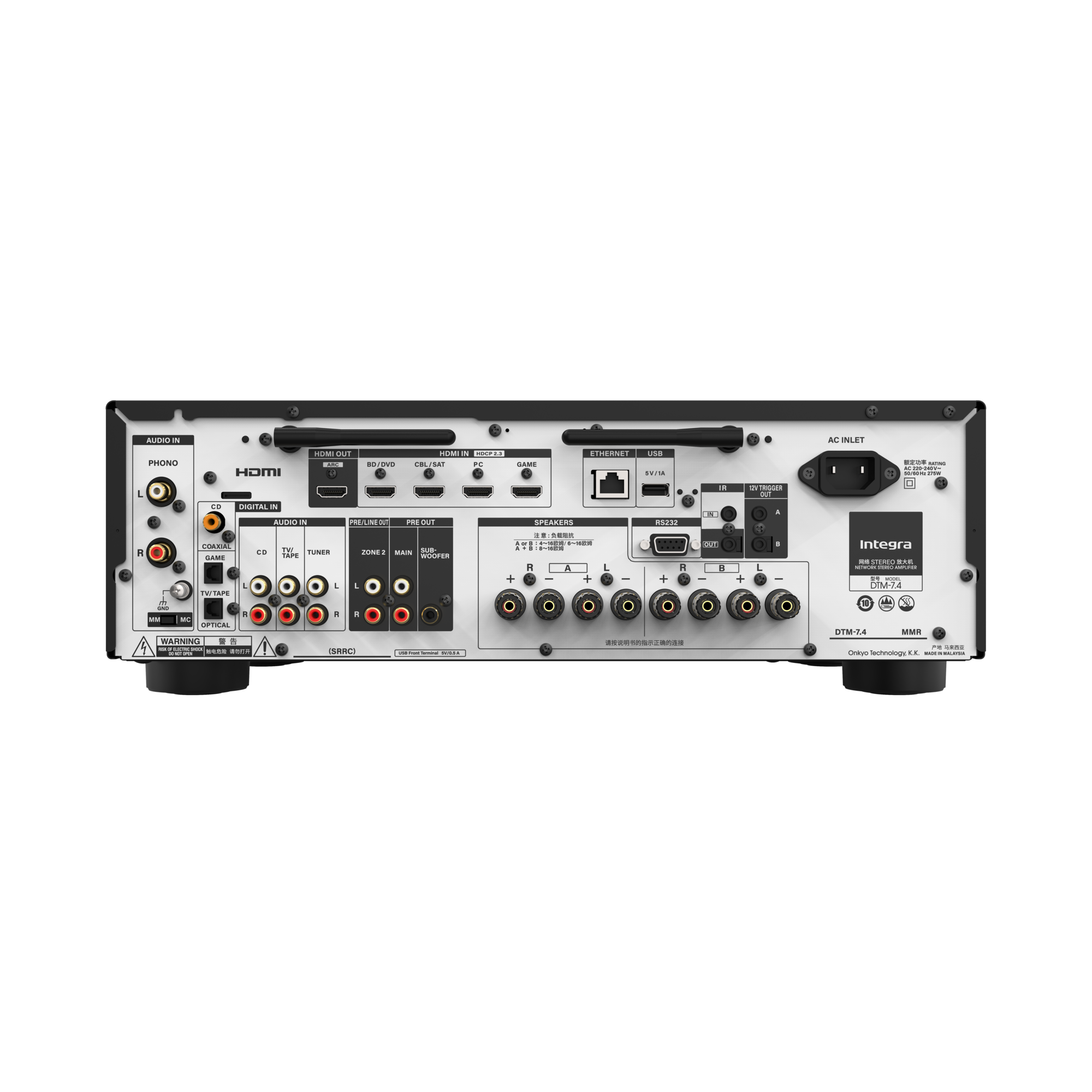

HDMI 4in / 1out – all supports 8K up to 40Gbps, and ARC

Audio input: 3 Analog, 2 Optical, 1 Coaxial, Phono inputs, and Front/Rear USB

Audio output: Main and subwoofer pre-out, Zone2 Pre/lineout

Wi-Fi and Ethernet

AM/FM Tuner

Gold plated speaker terminals

Roon Ready certified

Chromecast built-in for audio, and AirPlay2

Music services: Spotify, Amazon Music HD, Tidal, Deezer, Pandora and TuneIn radio

Bluetooth receiver from mobiles and PC (SBC/AAC)

PRODUCT

Dimensions (W x H x D)

17 1/8" x 5 7/8"x 12 15/16"

(435 x 149 x 328 mm)

Weight

19.8 lbs

(9.0 kg)

CARTON

Dimensions (W x H x D)

21 1/4" x 9 7/16" x 15 3/4"

(540 x 240 x 400)

Weight

23.1 lbs

(10.5 kg)
