State-of-the-art digital room correction technology improves overall audio performance across the full frequency band with no additional upgrade required. Dirac Live automatically calibrates sound in your room using either your smartphone and the included wired mic or go virtually wireless with the Dirac Live PC or MacOS* application, and a 3rd party USB mic (not included). Dirac Live unlocks your loudspeakers’ full potential in any listening space and delivers a uniquely pristine listening experience. Now, you will get a more accurate measurement of the positions of your Surround Sound system to be more precise and balanced to provide a better result with an increased the upper limit of delay time from 20 milliseconds to 50 milliseconds.

*Device must be connected to the internet and the same network as your AVR.

Hear the sound filmmakers intended. This IMAX Enhanced A/V receiver features DTS:X sound technology optimized for the IMAX® signature experience, reproducing the full dynamic range of IMAX theatrical sound-mixes available with digitally re-mastered IMAX Enhanced content. A pre-set IMAX Mode reproduces audio at the highest levels and delivers an unmatched IMAX sound experience. Requires a free firmware update.

THX spends 40-60 hours testing over 2000 data points ensuring that this receiver is capable of meeting rigorous audio and video performance standards for reference level, distortion free playback and includes THX Loudness Plus technology to bring out intricate details at lower listening levels.

When playing any Dolby® format, engaging Dolby Atmos Height Virtualizer enables a more immersive listening experience, creating a virtual surround and height effect from traditional speaker layouts without the need for additional surround or height speakers.

Supports Dolby Atmos and DTS:X for an immersive three-dimensional sound-space through 7.2.2 or 5.2.4 channels. Connect an outboard power amp via 11.2-multichannel pre-outs and enjoy seamless top-to-bottom, side-to-side, and front-back coverage with one or two pairs of in-ceiling or add-on module speakers, and seven bookshelf or tower speakers. Experience lifelike 360° sound from the real world in your personal home theater space.

Integra products are designed and engineered to meet the demands of leading custom installers. CI Centric features such as Web Setup, Onboard HDMI Diagnostics, and compatibility with Remote Monitoring systems like OVRC Pro and Domotz make Integra AVRs the choice of the modern integrator. Optional rack mount kits provide a clean, finished look when installed in racks and cabinets, while a unique bright white back panel facilitates connections in hard-to-reach areas.

Klipsch Optimize Mode allows you to easily integrate your Klipsch Reference and Reference Premiere speakers seamlessly with your Integra AV receiver. Klipsch and Integra teamed up to implement precise crossover values for specific new Reference Premiere speakers. Now, you can simply select the model speakers you’ll be using for each individual channel, and the optimized crossover setting will be automatically applied.

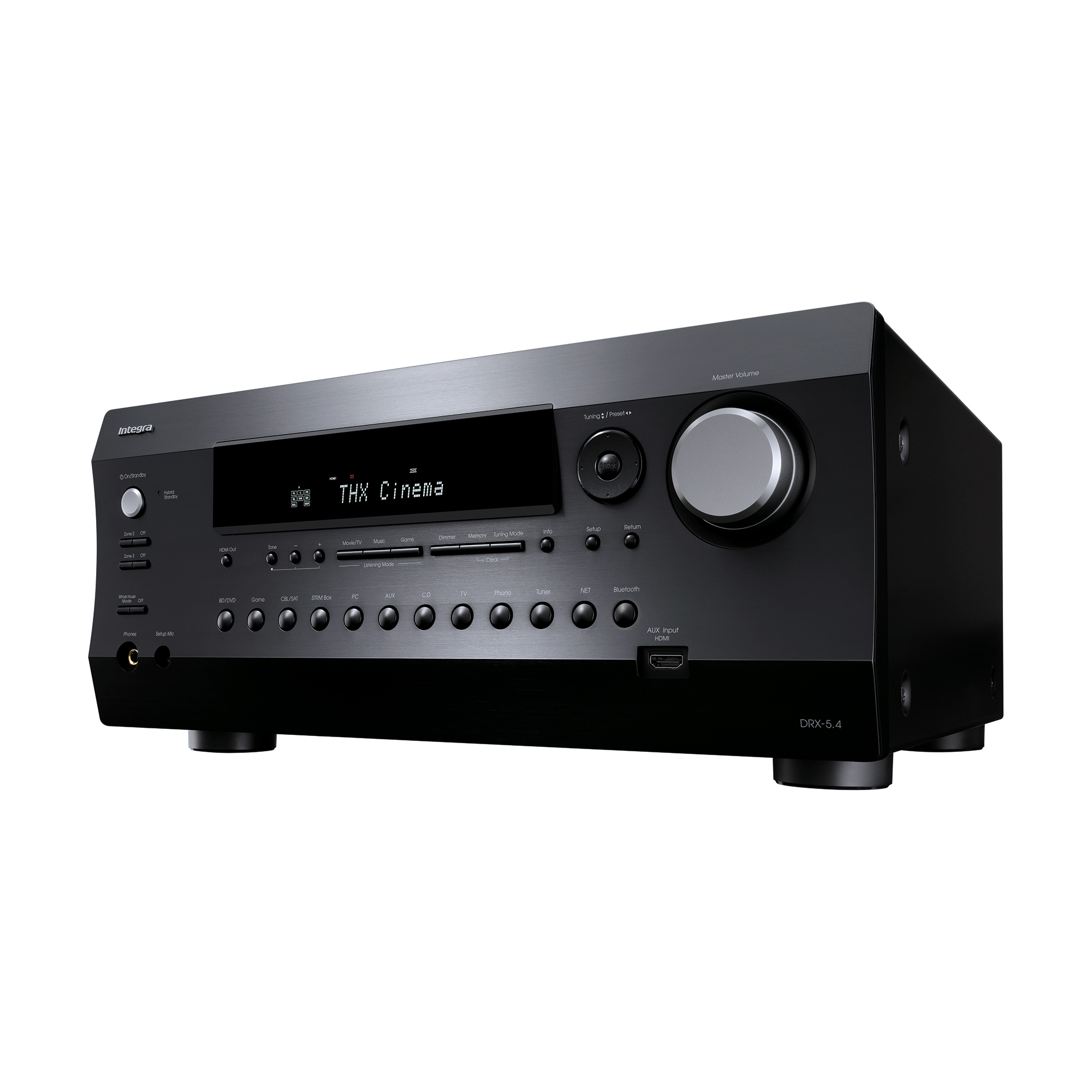

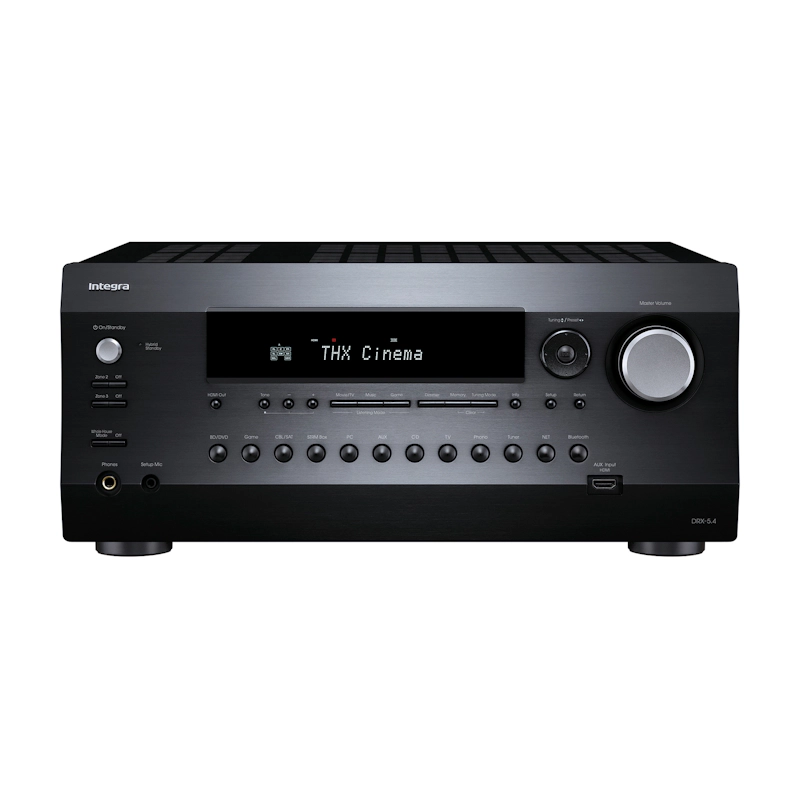

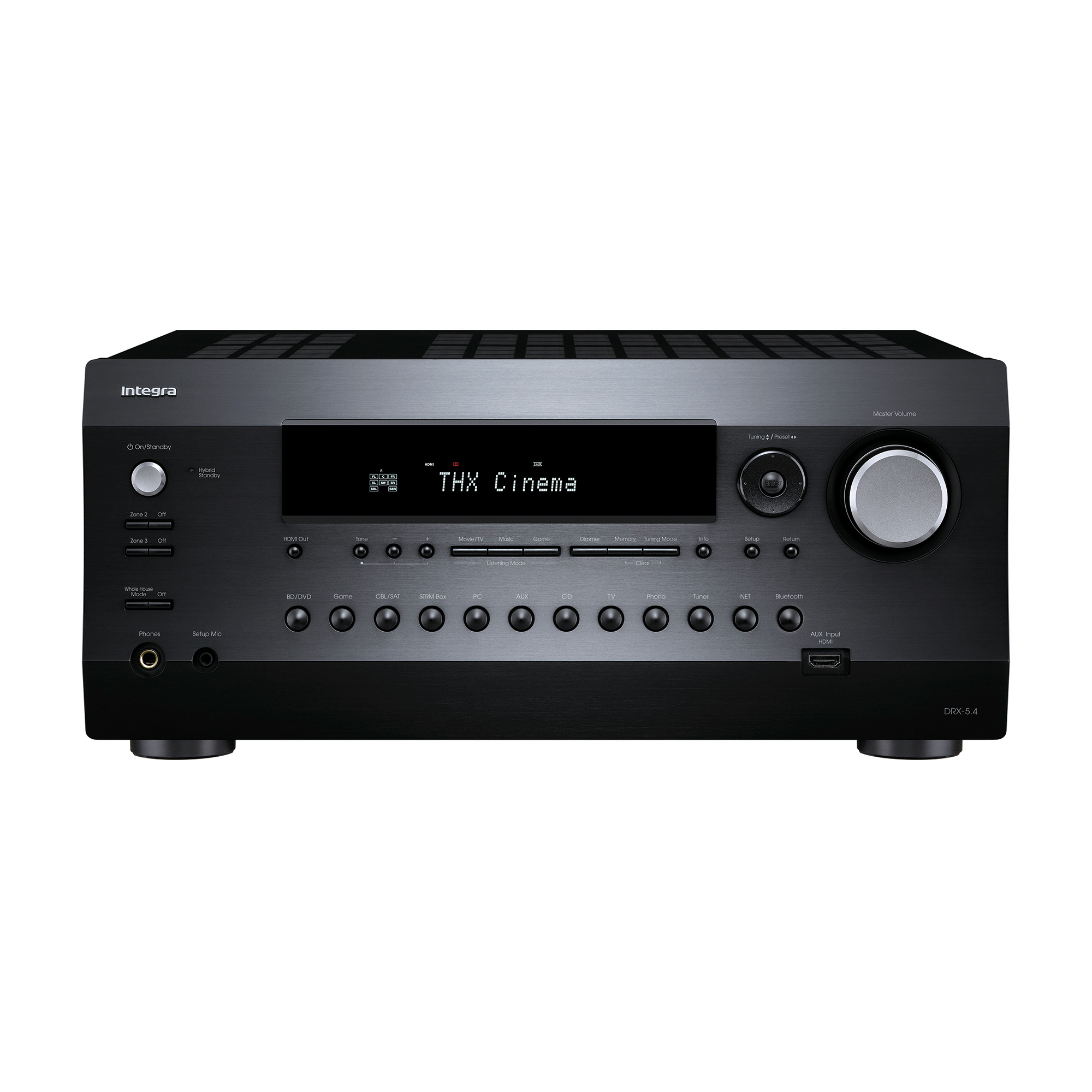

Aluminum front panel and volume knob

Front-to-Surround/Height speaker switching in Stereo Assign Mode

One-touch volume memory preset assignment to individual A/V inputs via front panel

OSD function displays A/V input signal data, output signal/settings data, and network information

Dolby® TrueHD and DTS-HD Master Audio® decoding

THX® listening modes for films, games, and music

Advanced Music Optimizer™ improves compressed audio playback quality

High-definition GUI over HDMI

Super Resolution 1080p to 4K and 1080p/4K to 8K video upscaling via HDMI

Crossover Adjustment (40/45/50/55/60/70/80/90/100/110/120/130/150/180/200 Hz)

A/V Sync Control (Up to 500 ms in 1 ms steps at 48 kHz)

Sleep timer, HDMI passthrough, and network standby

40 FM/AM/internet radio presets with station-naming (10 characters)

3-Mode display dimmer (Normal/Dim/Dimmer)

Ethernet supports setup and IP control via a web browser

Works with Crestron®, Control4®, Savant, URC, ELAN, RTI and other major control systems

Works with OvrC Pro and Domotz Remote Monitoring systems

RS-232 input for external control and automation

2 IR inputs and 1 output

3 programmable 12 V trigger-outs with adjustable delay (A: 100 mA, B: 25 mA, C: 25 mA)

Dealer-settings memory storage and recall function

AC inlet for detachable IEC power cable

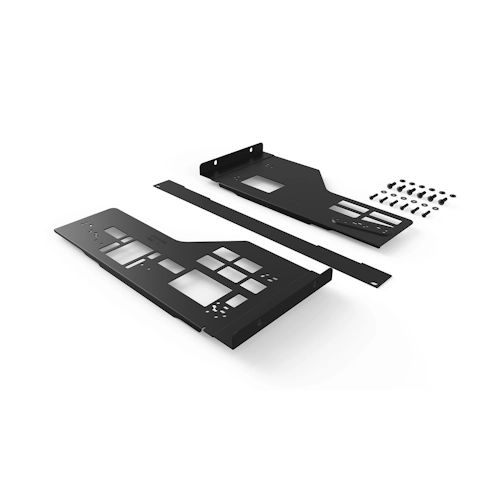

Optional rack-mount kit (IRK-180-4C)

Compatible rack mount (optional)

IRK-180-4C

See our full warranty information here

5.2.4/7.2.2-ch Dolby Atmos® and DTS: X® playback

Dolby Atmos Height Virtualization

Dolby Surround® and DTS® Neural: X upmixing

HDMI® inputs 1-3 support up to 8K/60AB and 4K/120AB video passthrough. HDMI® inputs 4-6 support up to 8K/60B and 4K/120AB video passthrough. HDMI® inputs 1-6 support HDR10+, Dolby Vision™, HDR10, HLG, BT.2020, VRR (Variable Refresh Rate), DSC (Display Stream Compression), ALLM (Auto Low Latency Mode), QFT (Quick Frame Transport), QMS (Quick Media Switching), eARC (enhanced Audio Return Channel), DeepColor™, x.v.Color™, LipSync, and HDCP 2.3

Front HDMI® input supports up to 4K/60 and HDMI 2.0 features.

11.2-ch pre-outs and processing for 7.2.4-ch

HDMI Main Out with eARC for encoded HQ audio, Sub/Zone 2 Out with OSD

Bidirectional Bluetooth® wireless technology Version 4.2 + LE (A2DP v1.2, AVRCP v1.3; RX: SBC/AAC, TX: SBC/Qualcomm® aptX™/apt X HD)

Separate Zone 2 speaker outputs enable 5.2.4-ch + Zone 2 speaker connection, 5.2.4-ch playback switching to 5.2.2-ch + Zone 2 playback

Dedicated DACs support synced/independent D/A audio distribution in Zone 2 and Zone 3 (including HDMI/SPDIF/NET) via Zone 2 and Zone 3 speaker outputs, Zone 2 pre-out and Zone 3 pre-out

Share any MAIN audio source to a wireless headphone dock via Zone B line-out

Phono equalizer (MM) and SACD (Super Audio CD) playback via HDMI (2.8 MHz 2-ch/multichannel)

Dirac Live® Room Correction supports multi-point acoustic calibration

AccuReflex™ phase-matching solution for Dolby Atmos-enabled speakers

Original DSP-based Vocal Enhancer clarifies in-program vocals/dialog

120 W per channel (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven, FTC), 250 W/Ch at 6 Ohms, 1 kHz, 10%, 1 Channel Driven

THX® Certified Select for Theater Reference Sound

IMAX® Enhanced certified for IMAX® digital remasters

Low-impedance amp system with 4-ohm speaker-driving capability

Massive custom transformers and customized 15,000 μF capacitors

Copper busbar connects capacitors to amplifiers

Non-phase-shift amp-circuit topology, audio-grade parts, and separate digital/analog circuit boards

Extruded anti-resonant aluminum heat-sink

Precision DAC supports 192 kHz/24-bit multichannel D/A conversion

VLSC™ (Vector Linear Shaping Circuitry) filtering technology (Front L/R)

PLL (Phase-Locked Loop) jitter-cleaning circuitry for SPDIF digital audio

Front L/R speaker bi-amping capability in 5.2/7.2/5.2.2-ch configuration

Independent tone controls (bass/treble) for all channels

Isolated quad-core SoC board supports high-speed 802.11ac (2×2 MIMO) Wi-Fi®

Amazon Music HD, Spotify®, TIDAL, TuneIn, Pandora®, and Deezer

Works with Sonos supporting multiple Sonos Connect/Port control and Volume Passthrough mode

Works with Alexa supporting multi-room music

Works with Hey Google and Chromecast built-in™

AirPlay 2 multi-room audio with Siri voice control

DTS Play-Fi® multi-room audio via Integra Music Control App

Compatible with the Integra Remote app for iPad®, iPhone®, and Android™

Roon Tested certified

Hi-Res Audio via network (DSD 11.2 MHz/5.6 MHz/2.8 MHz, FLAC, WAV [RIFF], ALAC, and AIFF to 192 kHz/24-bit)

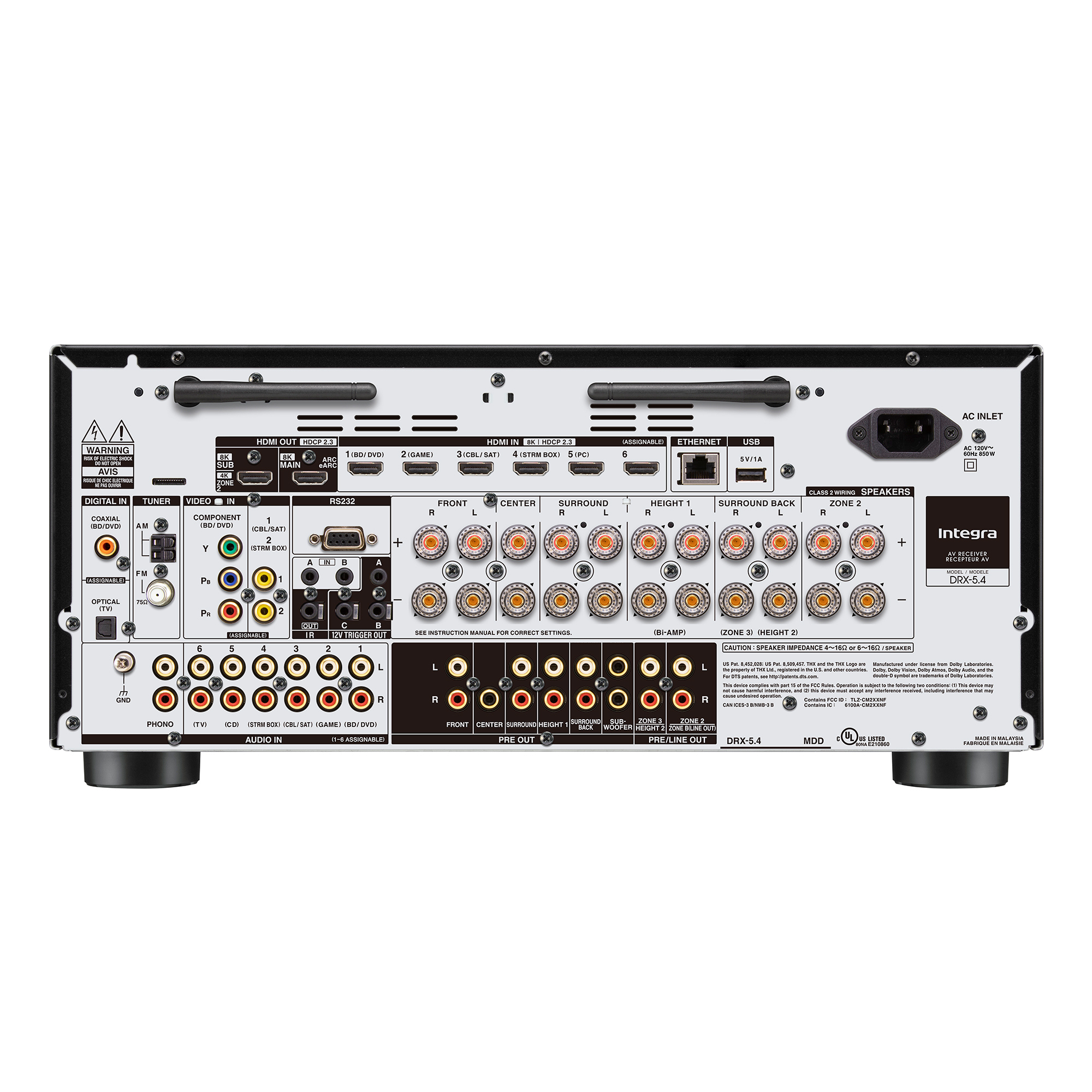

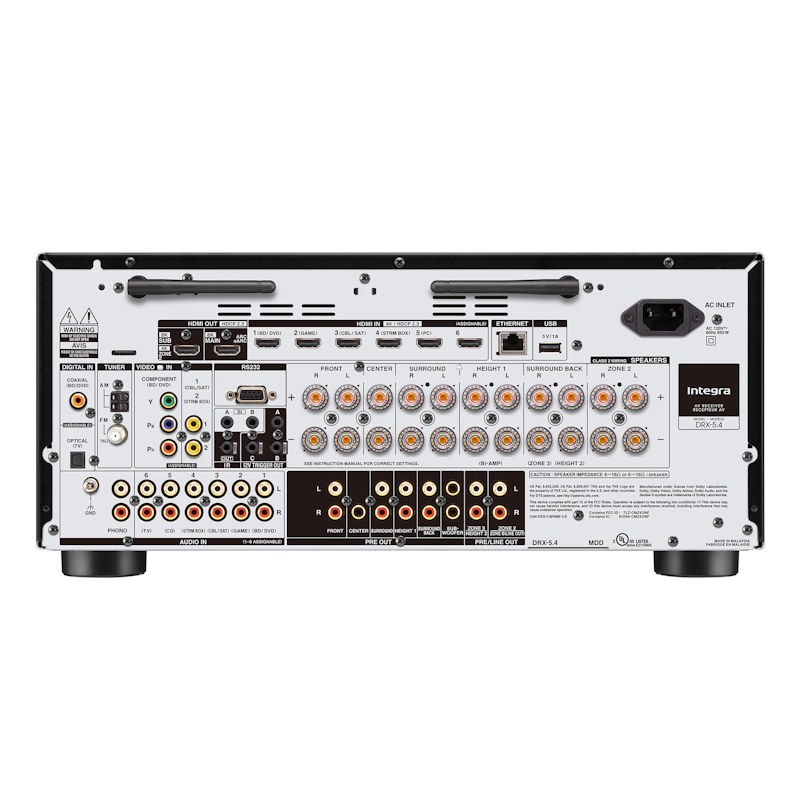

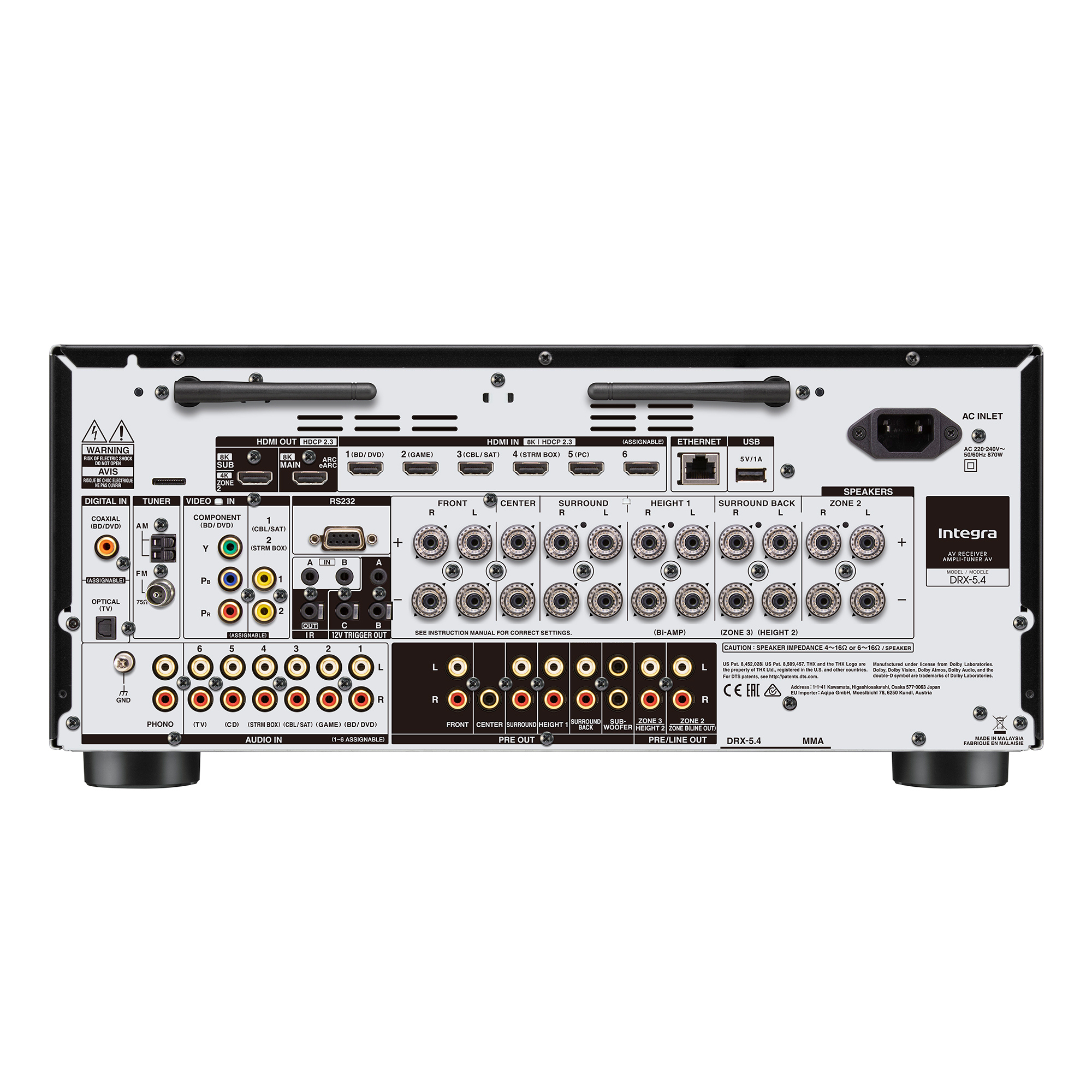

7 HDMI inputs (1 front), Main Out (eARC), Sub/Zone 2 Out

2 digital audio inputs (rear, 1 optical, 1 gold-plated coaxial, assignable)

6 gold-plated analog audio inputs (rear, assignable)

Gold-plated phono input and built-in equalizer (MM) for turntable connection

USB input (5 V/1 A) for audio playback (rear)

1/8"(3.5 mm) Dirac Live/AccuEQ Advance setup mic input (front)

2 gold-plated composite video inputs (rear, assignable)

1 gold-plated component video input (rear, assignable)

1/4"(6.3 mm) gold-plated headphone jack

11 gold-plated banana-plug-ready speaker posts with transparent knobs (including Zone 2 and Zone 3)

Dedicated gold-plated Zone 2 and Zone 3 speaker outputs

Gold-plated 11.2-ch pre-outs

Gold-plated Zone 2 pre-out /Zone B line-out and Zone 3 pre-out (analog RCA)

Ethernet LAN terminal

Tuning Frequency Range: FM 87.5 MHz–107.9 MHz AM 530 kHz–1,710 kHz

FM/AM Preset Memory: 40 Stations

Power Supply: AC 120 V~, 60 Hz

Power Consumption: 850 W

Standby Power Consumption: 0.1 W

Product Dimensions (W x H x D)

17 1/8"x 7 13/16"x 15 5/16"

(435 x 198 x 388.5 mm)

Product Weight

30.9 lbs.

(14.0 kg)

Carton Dimensions (W x H x D)

22 1/16"x 12 5/8"x 18 3/16"

(560 x 320 x 462 mm)

Carton Weight

37.5 lbs.

(17.0 kg)
