Dolby Atmos Height Virtualizer

When playing any Dolby® format, engaging Dolby Atmos Height Virtualizer enables a more immersive listening experience, creating a virtual surround and height effect from traditional speaker layouts without the need for additional surround or height speakers.

Dolby Atmos & DTS:X

Supports Dolby Atmos and DTS:X for an immersive three-dimensional sound-space through 5.1.2-channels. Connect an outboard power amp via Zone 2 pre-out for 5.1.2 in the main Zone with 7 channels of internal amplification, and a different source in stereo in Zone 2.

Integra products are designed and engineered to meet the demands of leading custom installers. CI Centric features such as Web Setup, Onboard HDMI Diagnostics, and compatibility with Remote Monitoring systems like OVRC Pro and Domotz make Integra AVRs the choice of the modern integrator. Optional rack mount kits provide a clean, finished look when installed in racks and cabinets, while a unique bright white back panel facilitates connections in hard-to-reach areas.

Klipsch Optimize Mode allows you to easily integrate your Klipsch Reference and Reference Premiere speakers seamlessly with your Onkyo AV receiver. Klipsch and Onkyo teamed up to implement precise crossover values for specific new Reference Premiere speakers. Now, you can simply select the model speakers you’ll be using for each individual channel, and the optimized crossover setting will be automatically applied.

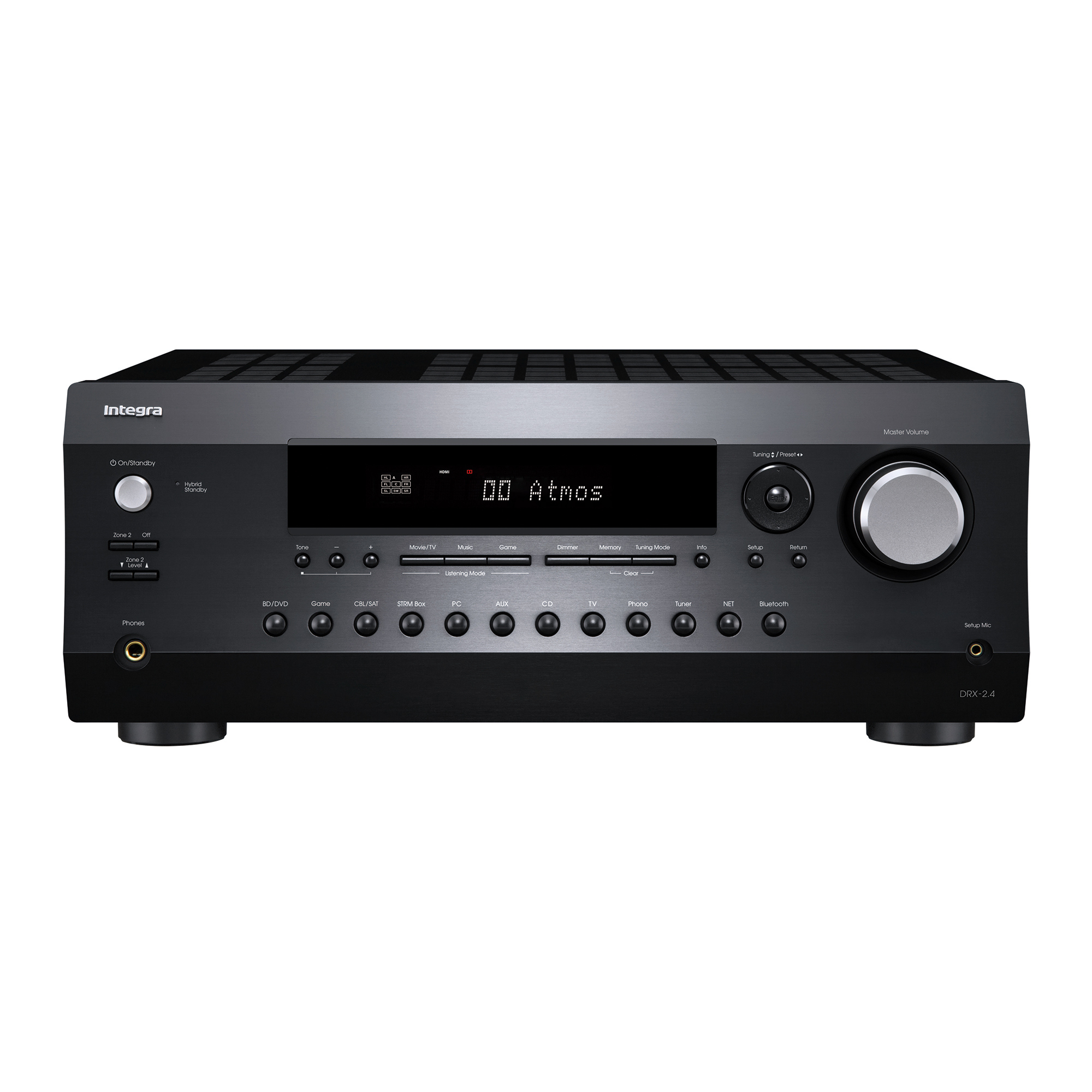

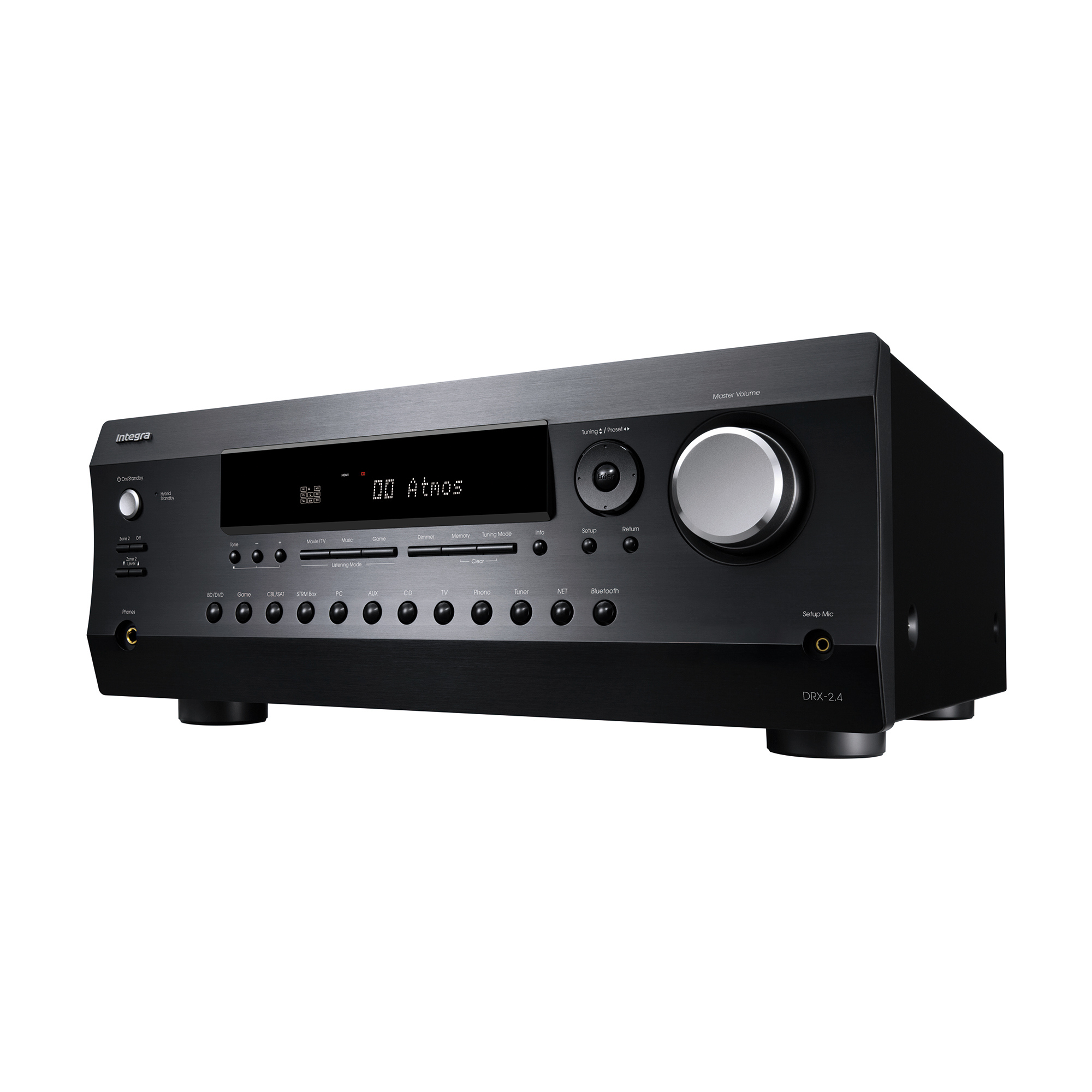

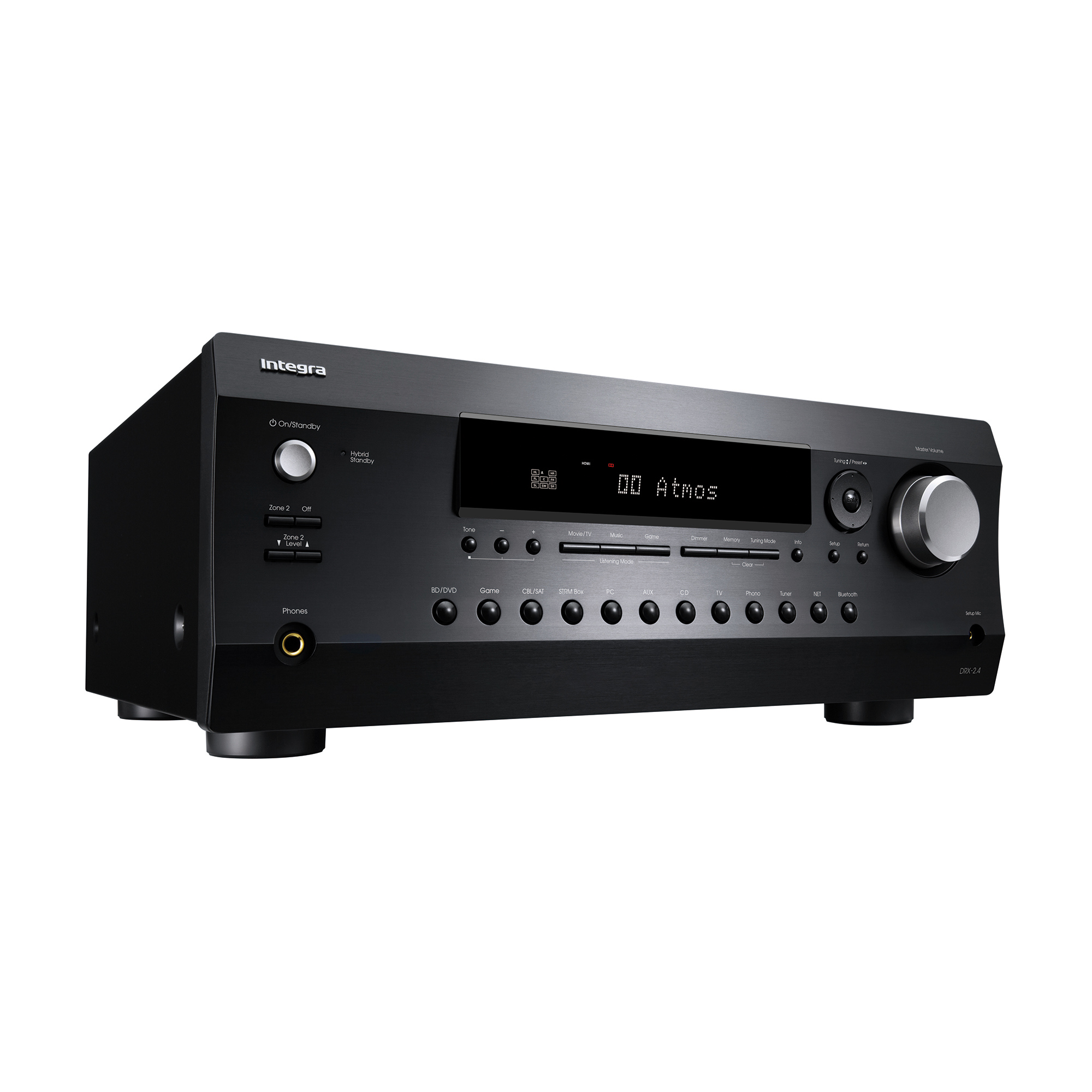

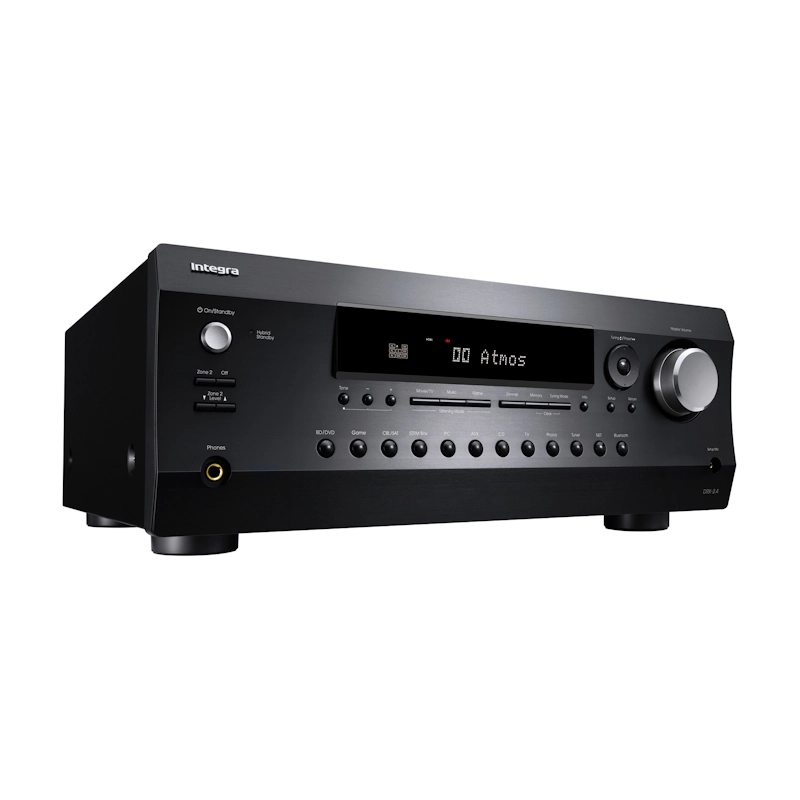

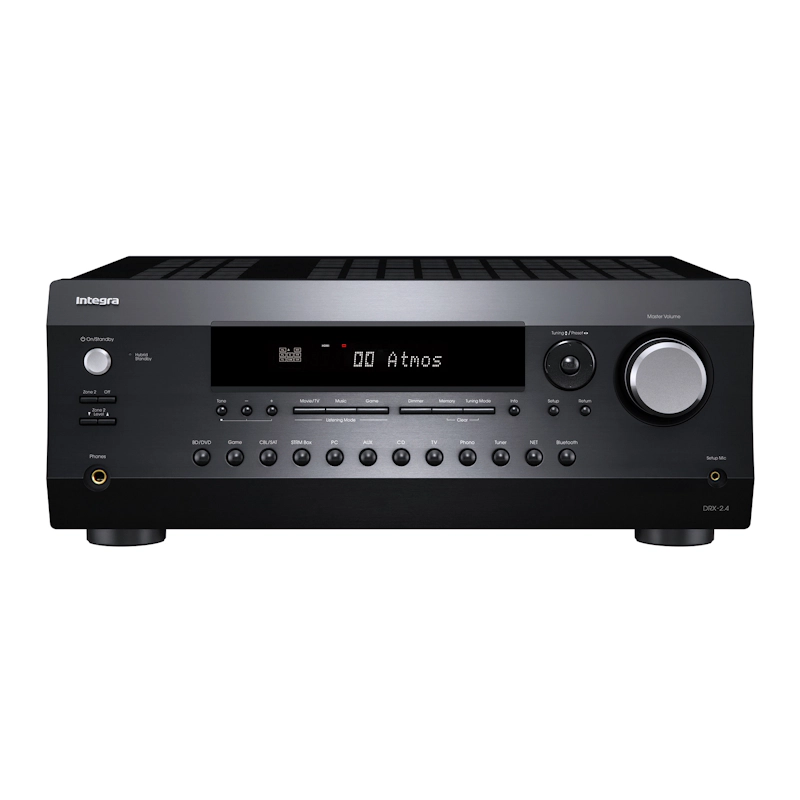

Aluminum front panel and volume knob

One-touch volume memory preset assignment to individual A/V inputs via front panel

OSD function displays A/V input signal data, output signal/settings data, and network information

Dolby® TrueHD and DTS-HD Master Audio® decoding

Advanced Music Optimizer™ improves compressed audio playback quality

High-definition GUI over HDMI

4K to 8K, 1080p to 8K/4K video upscaling via HDMI

Crossover Adjustment (40/45/50/55/60/70/80/90/100/110/120/130/150/180/200 Hz)

A/V Sync Control (Up to 500 ms in 1 ms steps at 48 kHz*17)

Sleep timer, HDMI passthrough, and network standby

40 FM/AM/internet radio presets with station-naming (10 characters)

3-Mode display dimmer (Normal/Dim/Dimmer)

Ethernet supports setup and IP control via a web browser

Works with Crestron®, Control4®, Savant, URC, ELAN, and RTI automation and other major control systems

Works with OvrC Pro and Domotz Remote Monitoring systems

RS-232 input for external control and automation

2 IR inputs and 1 output

3 programmable 12 V trigger-outs with adjustable delay (A: 100 mA, B: 25 mA, C: 25 mA)

Dealer-settings memory storage and recall function

AC inlet for detachable IEC power cable

Compatible rack mount (optional)

IRK-155-3D

See our full warranty information here

5.1.2-ch Dolby Atmos® and DTS: X® playback

Dolby Atmos Height Virtualization

Dolby Surround® and DTS® Neural:X upmixing

HDMI 2.1 features are supported on HDMI inputs 1–3, Main Out, and Sub/Zone 2 Out in Sub Mode output including VRR, ALLM, QFT (Quick Frame Transport), DSC (Display Stream Compression), QMS (Quick Media Switching), and eARC (Main Out).

Inputs 1-3 support HDMI 2.1 8K/60AB and 4K/120AB. Inputs 4-6 support up HDMI 2.0b 4K/60. Main+Sub output supports simultaneous 8K/60AB and 4K/120AB, and Main+Zone 2 supports 8K/60AB and 4K/60 respectively.

HDMI Main Out with eARC for encoded HQ audio, Sub/Zone 2 Out with OSD

Bidirectional Bluetooth® wireless technology Version 4.2 + LE (A2DP v1.2, AVRCP v1.3; RX: SBC/AAC, TX: SBC/Qualcomm® aptX™/apt X HD)

Dedicated DACs support synced/independent D/A audio distribution in Zone 2 and Zone 3 (including HDMI/SPDIF/NET*6) via Zone 2 and Zone 3 speaker outputs, Zone 2 pre-out, and Zone 3 pre-out

Share any MAIN audio source to a wireless headphone dock via Zone B line-out

Phono equalizer (MM) and SACD (Super Audio CD) playback via HDMI (2.8 MHz 2-ch/multichannel)

AccuReflex™ phase-matching solution for Dolby Atmos-enabled speakers

Original DSP-based Vocal Enhancer clarifies in-program vocals/dialog

80 W per channel (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven, FTC)

Low-impedance amp system with 4-ohm speaker-driving capability

Massive custom transformer and hand-selected audio parts

Non-phase-shift amp-circuit topology for clear and cohesive sound

Optimum Gain Volume Circuitry

Precision DAC supports 192 kHz/24-bit multichannel D/A conversion

VLSC™ (Vector Linear Shaping Circuitry) filtering technology (Front L/R)

PLL (Phase-Locked Loop) jitter-cleaning circuitry for SPDIF digital audio

Front L/R speaker bi-amping capability in 5.2-ch configuration

Tone controls (bass/treble) for Front L/R channels

Isolated quad-core SoC board supports high-speed 802.11ac (2×2 MIMO) Wi-Fi®

Supports Amazon Music HD, Spotify®, TIDAL, TuneIn, Pandora®, and Deezer

Works with Sonos supporting multiple Sonos Connect/Port control and Volume Passthrough mode

Works with Alexa supporting multi-room music

Works with Hey Google and Chromecast built-in™

AirPlay 2 multi-room audio with Siri voice control

DTS Play-Fi® multi-room audio via Integra Music Control App

Compatible with the Integra Remote app for iPad®, iPhone®, and Android™

Roon Tested certified

Hi-Res Audio via network (DSD 11.2 MHz/5.6 MHz/2.8 MHz15, FLAC, WAV [RIFF], ALAC, and AIFF to 192 kHz/24-bit16)

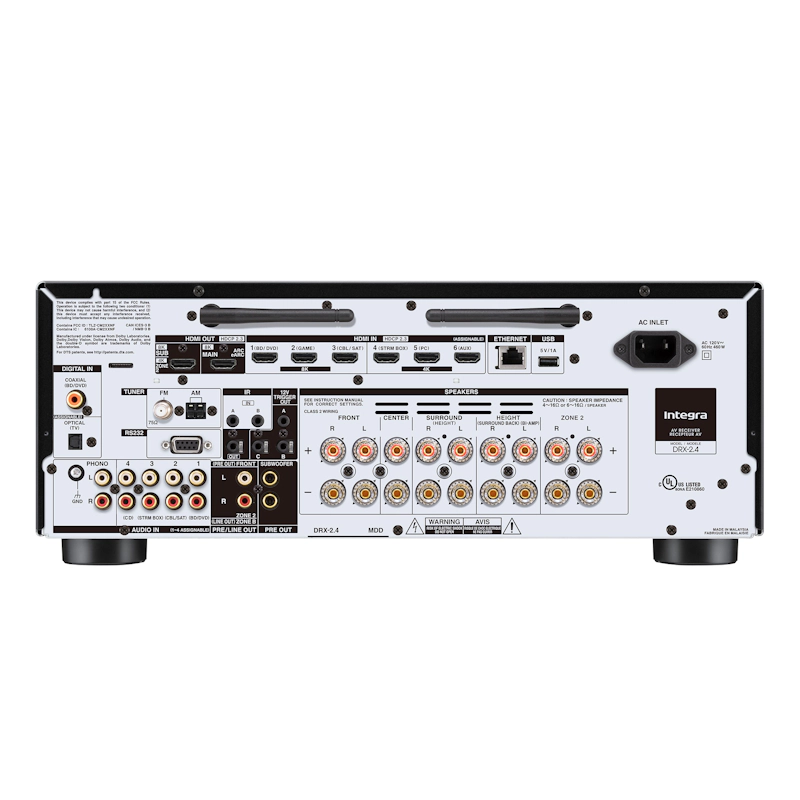

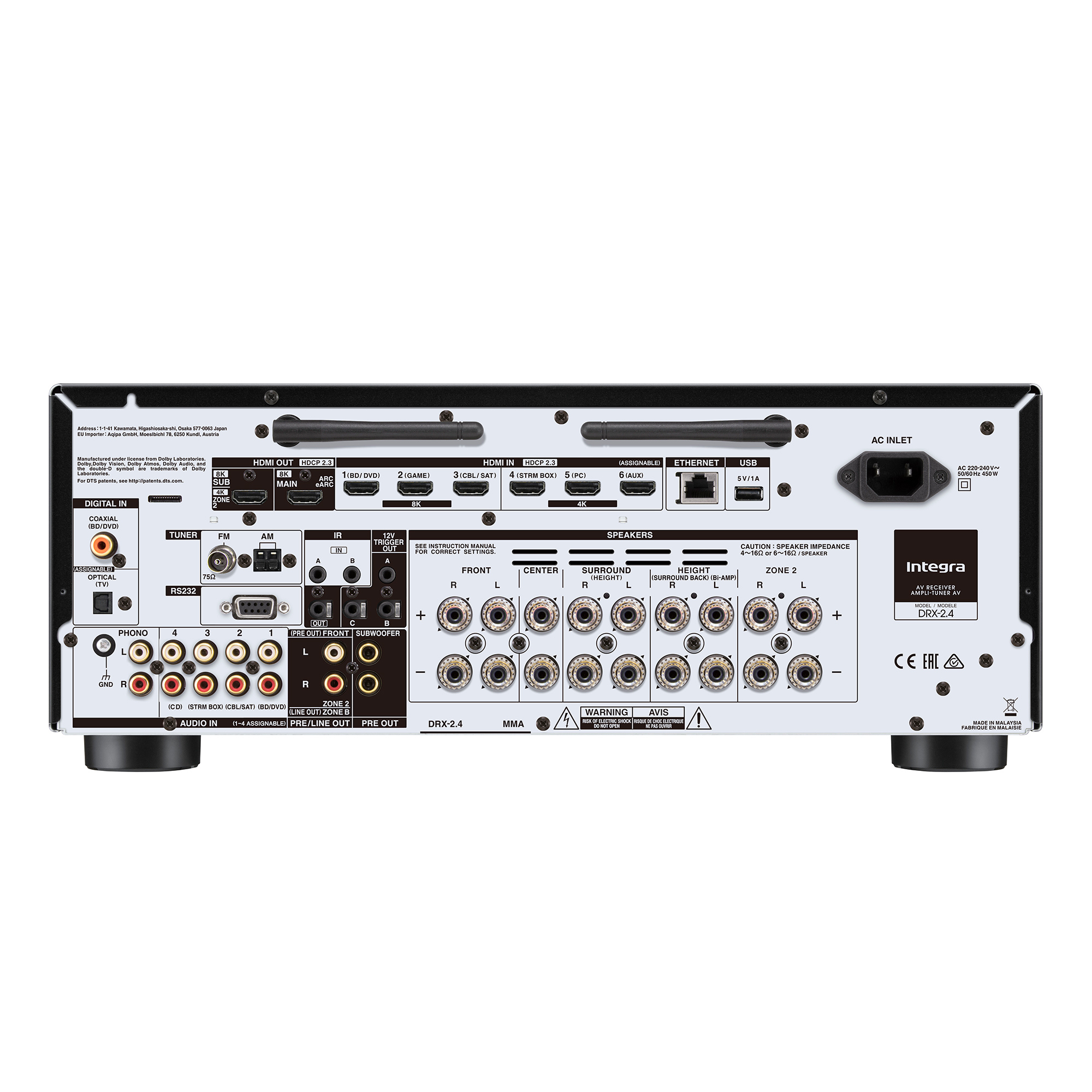

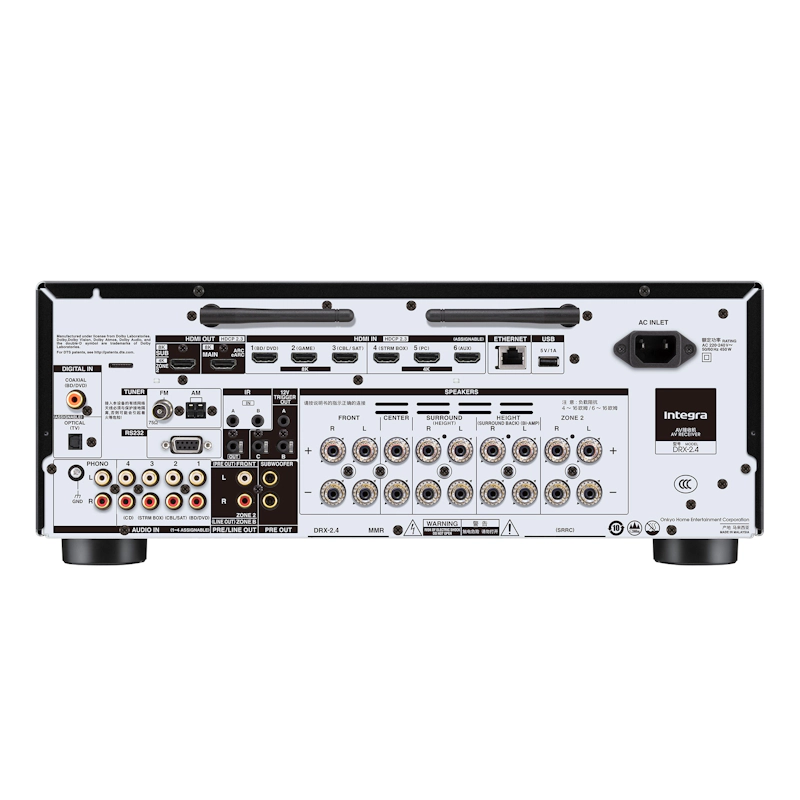

6 HDMI inputs, Main Out (eARC), Sub/Zone 2 Out

2 digital audio inputs (rear, 1 optical, 1 gold-plated coaxial, assignable)

4 gold-plated analog RCA audio inputs (rear, assignable)

Gold-plated phono input and built-in equalizer (MM) for turntable connection

USB input (5 V/1 A) for audio playback (rear)

Gold-plated 1/8" (3.5 mm) AccuEQ setup mic input (front)

Gold-plated 1/4" (6.35 mm) headphone jack

9 gold-plated banana-plug-ready speaker posts with transparent knobs (including Zone 2)

Dedicated gold-plated Zone 2 speaker outputs

Gold-plated Front L/R pre-out, Zone 2 pre-out, and Zone B line-out (analog RCA)

2 subwoofer pre-outs

Ethernet LAN terminal

Power Output Front L/R: 80 W/Ch at 8 Ohms, 20 Hz–20 kHz, 0.08%, 2 Channels Driven, FTC, 170 W/Ch at 6 Ohms, 1 kHz, 10%, 1 Channel Driven,

Dynamic Power: 160 W (3 Ohms, Front) 125 W (4 Ohms, Front) 85 W (8 Ohms, Front)

Input Sensitivity and Impedance: 200 mV rms/47 k-Ohms (Line/Unbalance) 3.5 mV rms/47 k-Ohms (Phono MM)

THD+N (Total Harmonic Distortion + Noise): 0.08% (20 Hz–20 kHz, Half Power)

Rated RCA Output Level and Impedance: 1 V rms/470 Ohms (Pre-out/Subwoofer Pre-out) 200 mV rms/470 k-Ohms (Zone B Line-out)

Phono Overload: 70 mV (MM, 1 kHz, 0.5%)

Frequency Response: 10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)

Tone Control: ±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble)

Signal-to-Noise Ratio: 106 dB (IHF-A, Line) 80 dB (IHF-A, Phono)

Speaker Impedance: 4 Ohms–16 Ohms

Tuning Frequency Range

FM 87.5 MHz–107.9 MHz

AM 530 kHz–1,710 kHz

FM / AM Preset Memory

40 Stations

Power Supply: AC 120 V~, 60 Hz

Power Consumption: 460 W

Standby Power Consumption: 0.1 W

Product Dimensions (W x H x D):

17 1/8"x 6 7/8"x 14 13/16"

(435 x 174 x 376.5 mm)

Product Weight

21.2 lbs.

(9.6 kg)

Carton Dimensions (W x H x D)

22 1/16"x 12"x 18 3/8"

560 x 305 x 467 mm

Carton Weight

28.9 lbs.

(9.6 kg)
